LangFlow RAG Tutorial & Guide 2025

Retrieval-Augmented Generation (RAG) lets you build applications that answer questions using your own data. Instead of relying solely on what a language model learned during training, RAG retrieves relevant information from your documents and feeds it to the model as context. The result is accurate, grounded responses based on your actual content, rather than potentially outdated or hallucinated information.

LangFlow is an open-source visual platform that makes building RAG systems accessible without writing extensive code. You drag and drop components, connect them together, and deploy a working pipeline.

Let’s break down the full process step by step, from setup to production.

What is Retrieval-Augmented Generation (RAG)?

RAG combines two things: a retrieval system that finds relevant information from your documents, and a language model that generates responses using that information. Instead of relying solely on what an LLM learned during training, RAG lets you ground responses in your specific data.

How it works: when someone asks a question, the system searches your document collection for relevant chunks, then passes those chunks to the LLM as context. The LLM generates an answer based on the retrieved information rather than making things up.

This matters for business applications where accuracy is critical. A customer support bot needs to reference your actual documentation, not hallucinate policies. A legal research tool must cite real case law, not invent precedents.

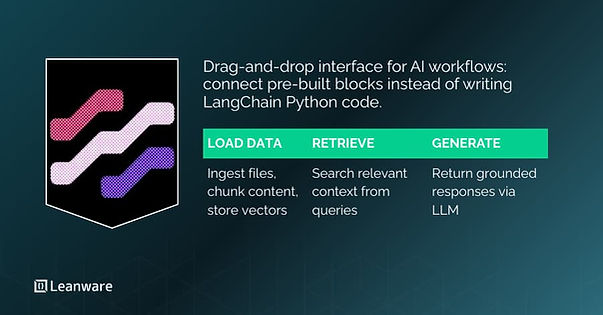

Why use LangFlow for RAG?

LangFlow lets you build, test, and refine a RAG pipeline through a visual UI. Instead of wiring up everything in Python, you drag blocks and connect them. It supports LangChain modules, a wide range of LLMs, multiple vector databases, and custom components. The interface helps newcomers understand how RAG works and gives advanced users a faster way to iterate.

You can LangFlow for rapid prototyping, internal tools, demos, and even small production deployments. It hits a balance between accessibility and flexibility, which makes it useful for both beginners and experienced developers.

Getting Started with LangFlow

System Requirements

LangFlow requires Python 3.10 through 3.13. The recommended package manager is uv, though pip works as well. For hardware, a dual-core CPU and 2 GB of RAM will handle basic flows. More complex pipelines with larger documents need additional resources.

You also need API keys for the services you plan to use. OpenAI for embeddings and LLM responses is common, though LangFlow supports alternatives like Anthropic, Cohere, and local models through Ollama.

Installation Options

The simplest approach is LangFlow Desktop, available for macOS and Windows. It bundles all dependencies and handles updates automatically.

For more control, install the Python package:

uv pip install langflow
langflow run

This starts the server at http://127.0.0.1:7860. The visual editor opens in your browser.

Docker provides another option for isolated deployments:

docker run -it --rm -p 7860:7860 langflowai/langflow:latest

For production environments, the Docker Compose setup includes PostgreSQL for persistent storage instead of the default SQLite database.

First Configuration

When LangFlow launches, you see the project dashboard. Click New Flow and select the Vector Store RAG template. This creates two connected workflows already configured for basic RAG operations.

The default template uses Astra DB as the vector store. You can swap this for alternatives like Milvus, ChromaDB, or FAISS by deleting the Astra DB component and dragging in your preferred option from the sidebar.

Building Your First RAG Flow

Processing Source Data

The File component accepts your documents. LangFlow handles PDFs, text files, and over 40 other file types through Docling processing. Upload your file by clicking the File component and selecting your document.

For web content, use the URL component with LangChain's RecursiveURLLoader to scrape pages. You can also connect to databases or APIs depending on your data source.

The quality of your RAG output depends heavily on input data quality. Clean, well-structured documents produce better results than messy content with inconsistent formatting.

Setting Up Embeddings and Vector Store

After loading documents, the Split Text component breaks content into chunks. Default settings use RecursiveCharacterTextSplitter, which maintains semantic coherence by respecting paragraph and sentence boundaries. Chunk size matters: too small and you lose context, too large and you exceed model limits.

Connect the chunked output to an Embedding Model component. LangFlow centralizes model configuration, so you select your provider (OpenAI, Cohere, or a local option) in one place. The embeddings transform text chunks into numerical vectors that capture semantic meaning.

These vectors go into your vector store. For local development, FAISS offers speed: benchmarks show search times around 0.34ms, compared to 2.58ms for ChromaDB. FAISS excels with large datasets and provides GPU acceleration for billions of vectors.

ChromaDB trades some speed for convenience. It stores metadata alongside vectors, supports filtering during search, and handles persistence automatically. For prototyping and smaller datasets, ChromaDB works well.

Creating the Retrieval Component

The Retriever flow receives user queries. When someone asks a question, the system embeds that question using the same model you used for documents, then searches the vector store for similar chunks.

Connect a Chat Input component to receive queries. Link it to a Vector Search component configured with your vector store. The search returns the most relevant document chunks based on semantic similarity.

The number of chunks retrieved affects response quality. Retrieving too few might miss important context. Retrieving too many dilutes relevant information and can exceed token limits. Start with 3–5 chunks and adjust based on testing.

Designing the Chat Interface

Connect retrieved chunks to a Prompt component that structures the context for your LLM. Link this to a Language Model component. Configure your provider and model: GPT-4 for complex reasoning, GPT-3.5-turbo for faster responses, or a local model through Ollama for privacy.

The Chat Output component displays responses to users. Run the flow by clicking Run in the interface, then test with questions about your uploaded content.

Integrating with LLMs

API Configuration

LangFlow supports multiple LLM providers. For OpenAI, add your API key in the model component settings. The key is stored securely and can be managed through environment variables in production deployments.

Anthropic Claude models work similarly. Ollama enables local models without API costs, useful for sensitive data that cannot leave your infrastructure. Configure Ollama by pointing to your local server address.

Prompt Templates and Memory

LangFlow includes memory components that maintain conversation history. This enables follow-up questions that reference previous exchanges. Connect a Memory component between your chat input and prompt to preserve context across turns.

Prompt engineering significantly impacts response quality. Be specific about the format you want, provide examples when helpful, and instruct the model on how to handle cases where retrieved context does not contain the answer.

Tuning Responses

If responses include hallucinated information, adjust your prompt to instruct the model to say "I don't know" when context is insufficient. Increase the number of retrieved chunks if relevant information is being missed.

For verbose responses, add explicit length constraints to your prompt. For off-topic answers, check that your chunking preserves semantic units and that your embedding model suits your content type.

Testing and Deployment

Interactive Testing

LangFlow's Playground lets you test flows without writing code. Type questions, view responses, and inspect the retrieved context that informed each answer. This feedback loop helps you iterate quickly on chunk sizes, retrieval counts, and prompt templates.

Exporting Flows

Export flows as JSON files through the share menu. These exports include all component configurations but exclude sensitive data like API keys. Store JSON files in version control alongside your application code.

Import flows on other LangFlow instances to share configurations across teams or replicate setups between development and staging environments.

Deployment Options

For production, Docker is the standard approach. The Docker Compose configuration in the LangFlow repository includes PostgreSQL and persistent volumes:

git clone https://github.com/langflow-ai/langflow.git
cd langflow/docker_example
docker-compose up

Kubernetes deployments use Helm charts from the LangFlow repository. The runtime chart focuses on production workloads with security settings like read-only root filesystems. Scale horizontally by adjusting replica counts in your values.yaml.

Cloud deployments work on any platform that runs Docker. Configure environment variables for database credentials, API keys, and authentication settings through your deployment platform's secrets management.

Best Practices and Optimization

Vector Store Optimization

Chunk size should match your content structure. Technical documentation might work well at 500-1000 characters. Legal documents with dense paragraphs might need 1500–2000 characters. Experiment with your specific content.

Hybrid search combines vector similarity with keyword matching. This catches cases where semantic similarity misses exact term matches that users expect. Consider re-ranking retrieved results with a cross-encoder before passing to the LLM.

Prompt Engineering for RAG

Structure prompts to prevent hallucination. Explicitly tell the model to base answers only on provided context. Include instructions for handling questions outside the scope of your documents.

Test edge cases: questions with partial answers in context, ambiguous queries, and topics your documents do not cover. Adjust prompts based on how the model handles these scenarios.

Monitoring and Updates

Log queries and responses to identify patterns in user questions. Questions that consistently produce poor responses indicate gaps in your document coverage or retrieval configuration.

Schedule periodic document re-ingestion as source content updates. Stale vectors lead to outdated answers. Automate this through your CI/CD pipeline when source documents change.

Troubleshooting Common Issues

Installation Issues

If LangFlow fails to start, verify your Python version is between 3.10 and 3.13. The uv package manager resolves dependencies faster than pip and avoids version conflicts.

On Windows, LangFlow Desktop may require Microsoft C++ Build Tools. For Linux, install gcc and development headers before running pip install.

Poor Retrieval Quality

When answers miss relevant information, check your chunking strategy. View the actual chunks being retrieved in the Playground.

Embedding model choice matters. OpenAI's text-embedding-ada-002 handles general English well. Multilingual documents need models trained on those languages.

Scaling and Costs

OpenAI API costs scale with usage. Cache common queries to reduce calls. Consider local models for high-volume queries.

Vector databases grow with document count. FAISS handles billions of vectors but requires memory proportional to index size.

Next Steps

You now have a working RAG system. Expand by adding more data sources through additional file loaders or database connectors. Improve retrieval with multi-query RAG, which generates multiple variations of user questions to retrieve more relevant context.

Build custom components when built-in options do not fit your needs. LangFlow lets you view and modify the underlying Python code for any component. Scale your deployment with Kubernetes and horizontal pod autoscaling based on actual usage patterns.

You can also connect to us for consultation and help to set up, integrate, or fine-tune LangFlow and RAG workflows for your projects.

Frequently Asked Questions

How much does LangFlow cost?

LangFlow is open source and free. Costs come from infrastructure and external APIs.

Can LangFlow handle multilingual documents?

Yes, but use multilingual embedding models for non-English content.

What is the maximum document size?

No hard limit exists, but LLM context windows constrain how much retrieved content fits in a prompt. Effective chunking matters more than total document size.

How do I integrate with Slack or Discord?

LangFlow flows expose REST APIs. Build a bot that calls your LangFlow endpoint and returns responses.

Can I use LangFlow with sensitive data?

Yes. Run LangFlow locally and use local models through Ollama to keep data off external APIs.
